Pre loaded with sound for multiple locos which are accessed simply by changing CV's.
Exhaust Chuffs:
GWR Prairie
BR Standard 4
BR Standard 5
BR 8F
LNER A4
Whistles:
GWR 45XX
BR Standard Class 4
BR Standard Class 5
BR Standard Class 7
Stanier 8F
S&DJR 7F
LNER A4
LNER Single Chime
SR West Country Single Chime
Peckett 0-6-0T
Traction Engine Single Chime
2-6-0 ‘Lyd’
Festiniog Double Fairlie

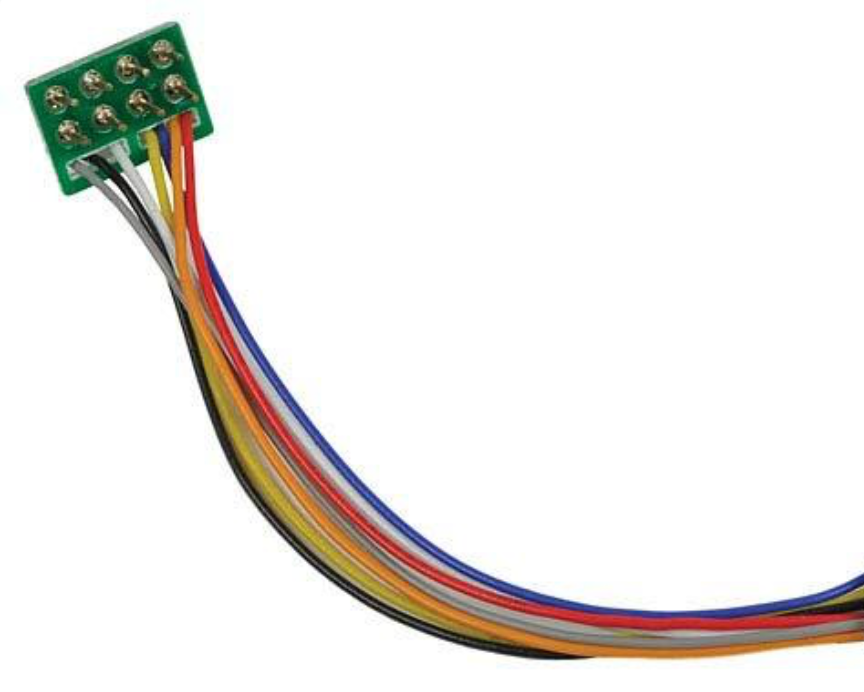

One of our smallest sound decoders, this micro 1-amp, universal-style format is ideal for small models with minimal space. It includes an optional capacitor or can be wired to a current keeper (stay alive) to maintain performance over dirty track and switches.
Will be supplied with a 20x20x7 Megabass speaker (not compatible with 4 ohm speakers)
Product Specifications
Dimensions: | 35 x 18 x 6mm |
Max. Motor Stall Current: | 2A |
Max. Function Current: | 100mA (each output) |
Function Outputs: | 6 |
Audio Amplifier: | 2 Watt, 8-Ohm Load |
DCC Track Voltage: | 7.5V – 22V |
Sound Channels: | 12 |
