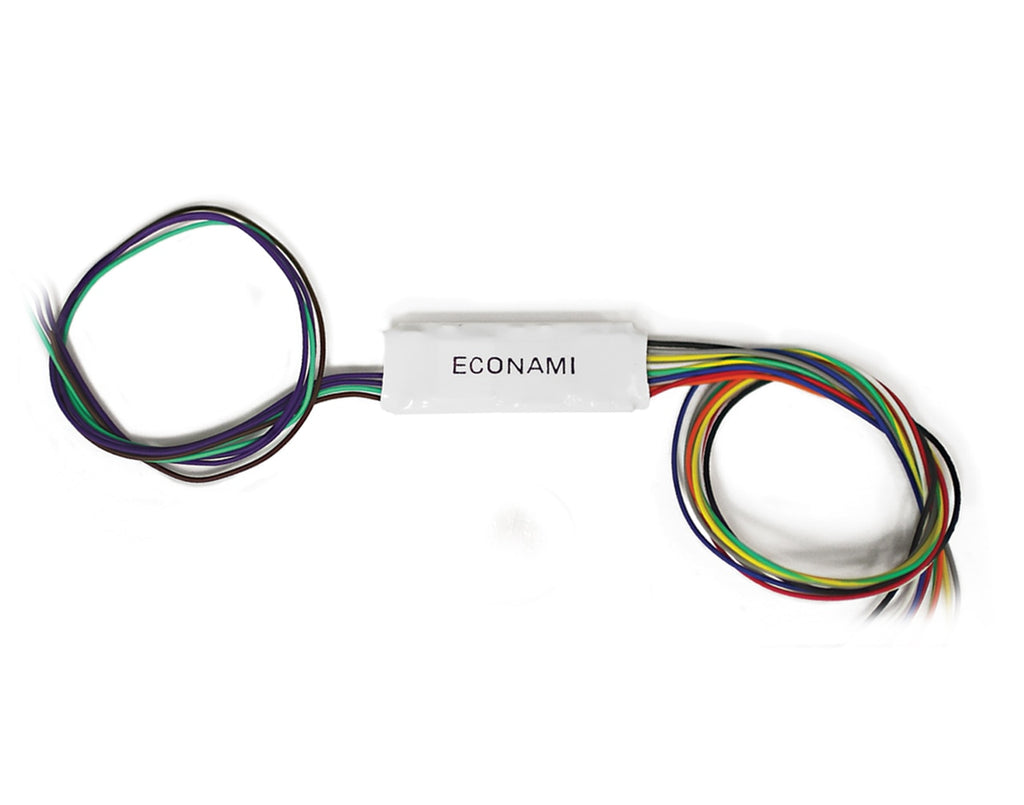

Soundtraxx Econami ECO-100, 8 pin - UK Steam

  • Sale
  • Regular price £82.99


Pre loaded with sound for multiple locos which are accessed simply by changing CV's.

Exhaust Chuffs:

GWR Prairie

BR Standard 4

BR Standard 5

BR 8F

LNER A4

Whistles:

GWR 45XX

BR Standard Class 4

BR Standard Class 5

BR Standard Class 7

Stanier 8F

S&DJR 7F

LNER A4

LNER Single Chime

SR West Country Single Chime

Peckett 0-6-0T

Traction Engine Single Chime

2-6-0 ‘Lyd’

Festiniog Double Fairlie



One of our smallest sound decoders, this micro 1-amp, universal-style format is ideal for small models with minimal space. It includes an optional capacitor or can be wired to a current keeper (stay alive) to maintain performance over dirty track and switches.

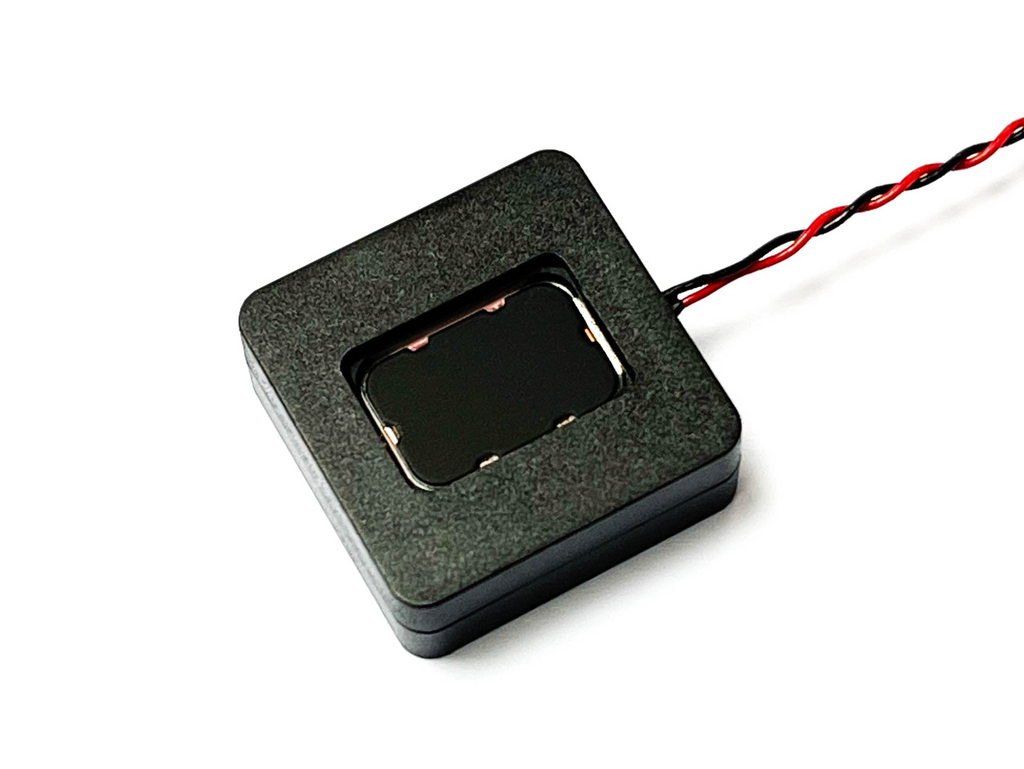

Will be supplied with a 20x20x7 Megabass speaker (not compatible with 4 ohm speakers)

Product Specifications

Dimensions: 27 x 10.5 x 5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 4
Audio Amplifier: 1 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 12
