Pre loaded with sound for multiple locos which are accessed simply by changing CV's.
The included locos are the class 20, class 31, class 37, class 47, class 66, class 67 and Leyand DMU (121 etc).

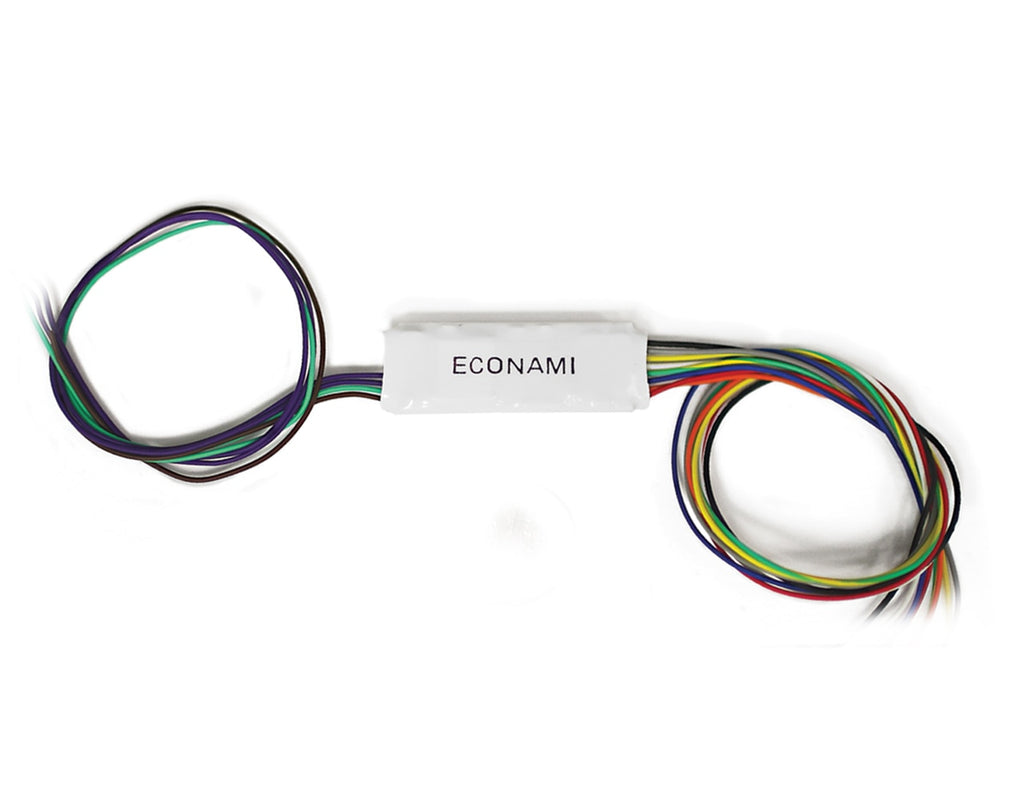

One of our smallest sound decoders, this micro 1-amp, universal-style format is ideal for small models with minimal space. It includes an optional capacitor or can be wired to a current keeper (stay alive) to maintain performance over dirty track and switches.

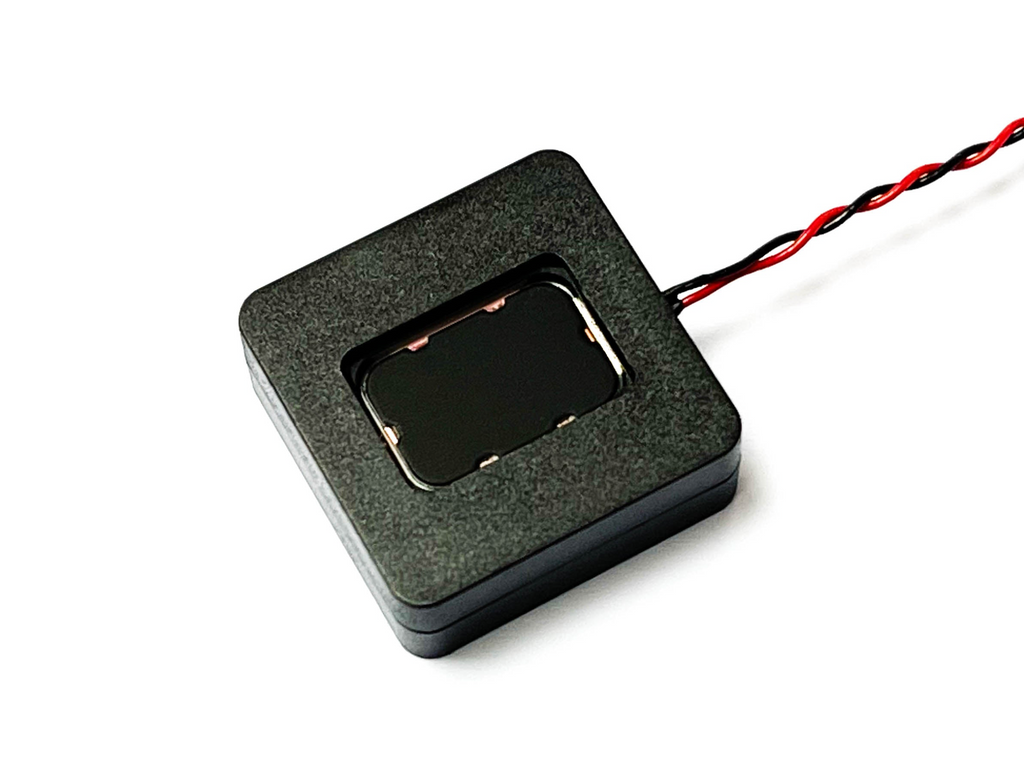

Will be supplied with a 20x20x7 Megabass speaker (not compatible with 4 ohm speakers)
Product Specifications
Dimensions: | 27 x 10.5 x 5mm |
Max. Motor Stall Current: | 1A |
Max. Function Current: | 100mA (each output) |
Function Outputs: | 4 |
Audio Amplifier: | 1 Watt, 8-Ohm Load |
DCC Track Voltage: | 7.5V – 22V |
Sound Channels: | 12 |
