Soundtraxx Econami 21 Pin - UK Diesel

  • Sale
  • £69.99
  • Regular price £79.99


Pre loaded with sound for multiple locos which are accessed simply by changing CV's.

The included locos are the class 20, class 31, class 37, class 47, class 66, class 67 and Leyand DMU (121 etc).

This 1-amp Digital Sound Decoder simply plugs into models equipped with an NEM-supported 21-pin socket. The UK ECO-21PNEM can be wired to a current keeper (stay alive) to maintain performance over dirty track and switches.

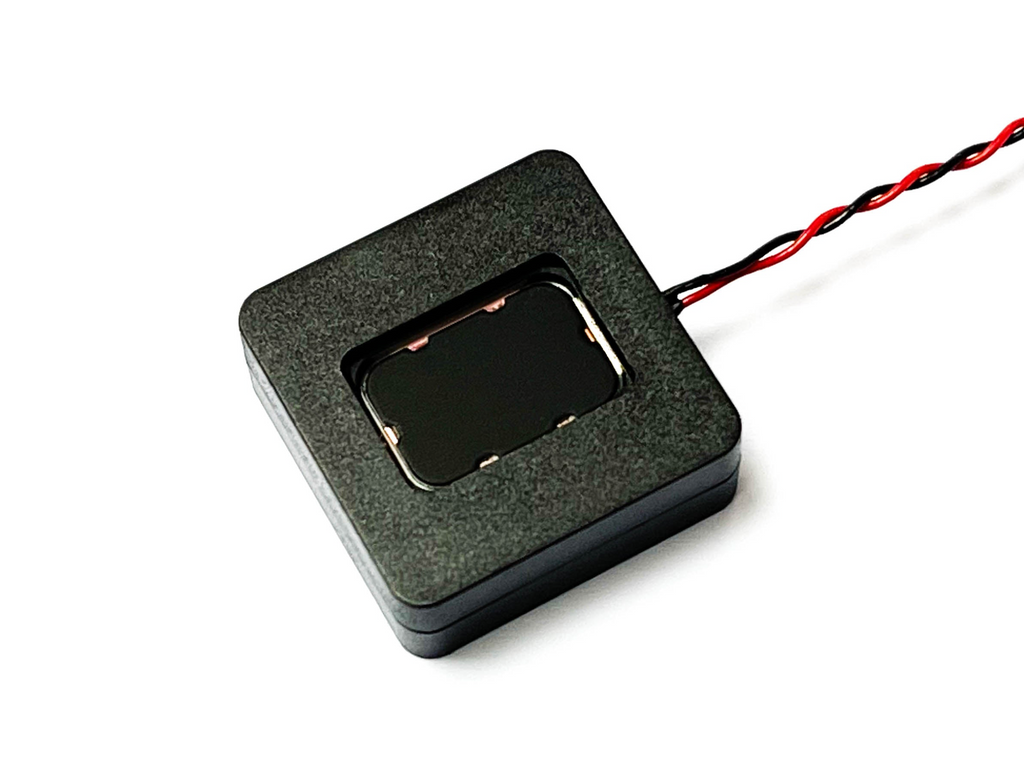

Will be supplied with a 20x20x7 Megabass speaker (not compatible with 4 ohm speakers)

Product Specifications

Dimensions: 30.5 x 15.5 x 6.55mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 6
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 12
